Positive fixed output linear voltage regulator, 5V nominal output voltage, 100mA maximum output current. Features a 1.7V dropout voltage and a maximum input voltage of 30V. Operates within a temperature range of 0°C to 125°C. Packaged in a 3-pin TO-92 case for through-hole mounting. RoHS compliant and lead-free.
PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L05ACZ technical specifications.
General
Accuracy
5%
Package/Case
TO-92
Dropout Voltage
1.7V
Height
4.95mm
Lead Free
Lead Free
Length
4.95mm
Max Input Voltage
30V
Min Input Voltage
7V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
100mA
Min Output Voltage
5V
Max Supply Current
6mA
Mount
Through Hole
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed, Adjustable
Output Voltage
5V
Package Quantity
2500
Packaging
Bag
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
49dB
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
10%
Weight
0.016oz
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L05ACZ Datasheet
Download the complete datasheet for Stmicroelectronics L78L05ACZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

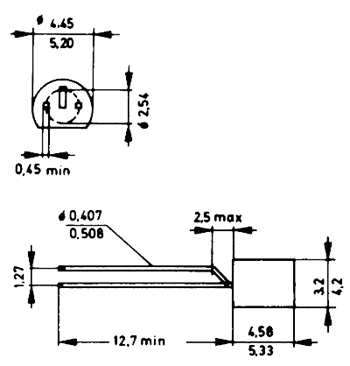

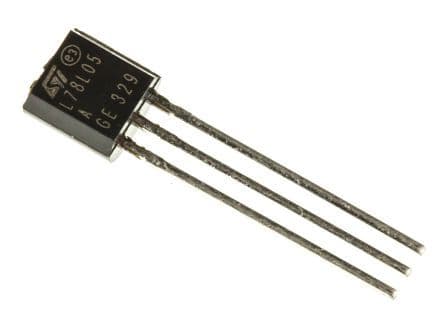

Product Images
