12V positive fixed output linear voltage regulator, designed for through-hole mounting in a TO-92 package. This power management IC offers a maximum output current of 100mA and operates with a minimum input voltage of 14V up to a maximum of 35V. Featuring a dropout voltage of 1.7V, it maintains a nominal output voltage of 12V with a quiescent current of 6.5mA. The device boasts a wide operating temperature range from -40°C to 125°C and a Power Supply Rejection Ratio (PSRR) of 42dB. This RoHS compliant component is lead-free.
PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L12ABZ technical specifications.
General
Package/Case
TO-92
Dropout Voltage
1.7V
Height
4.95mm
Lead Free
Lead Free
Length
4.95mm
Max Input Voltage
35V
Min Input Voltage
14V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Min Output Voltage
12V
Max Supply Current
6.5mA
Mount
Through Hole
Nominal Output Voltage
12V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
12V
Package Quantity
1
Packaging
Bulk
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
42dB
Quiescent Current
6.5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L12ABZ Datasheet
Download the complete datasheet for Stmicroelectronics L78L12ABZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

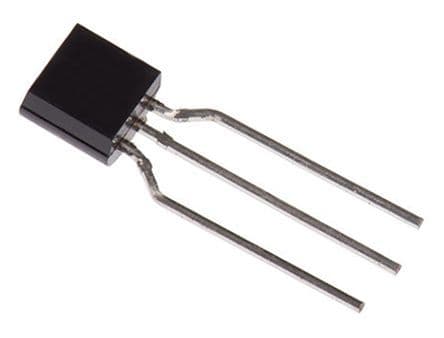

Product Images
