12V positive fixed output linear voltage regulator, offering 100mA output current with a 4% output voltage accuracy. Features a 1.7V dropout voltage and a maximum input voltage of 35V, operating from 0°C to 125°C. This through-hole component is housed in a TO-92 package and is RoHS compliant.
PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L12ACZ technical specifications.
General
Accuracy
4%
Package/Case
TO-92
Dropout Voltage
1.7V
Height
4.95mm
Lead Free
Lead Free
Length
4.95mm
Max Input Voltage
35V
Min Input Voltage
14V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
100mA
Min Output Voltage
12V
Mount
Through Hole
Nominal Output Voltage
12V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
12V
Output Voltage Accuracy
4%
Package Quantity
2500
Packaging
Bag
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
42dB
Quiescent Current
6.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
10%
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L12ACZ Datasheet
Download the complete datasheet for Stmicroelectronics L78L12ACZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

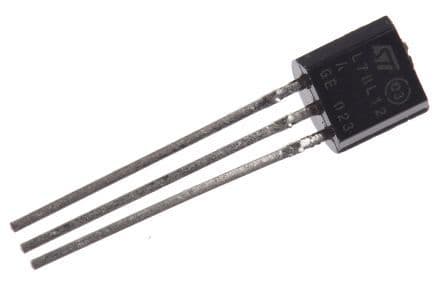

Product Images
