Positive fixed output linear voltage regulator, offering a 15V output voltage with a maximum output current of 100mA. Features a 1.7V dropout voltage and a maximum input voltage of 35V. Operates within a temperature range of 0°C to 125°C and boasts a 39dB PSRR. Packaged in a TO-92 through-hole mount, this RoHS compliant component is ideal for power management applications.
PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L15ACZ technical specifications.
General
Accuracy
4%
Package/Case
TO-92
Dropout Voltage
1.7V
Height
4.95mm
Lead Free
Lead Free
Length
4.95mm
Max Input Voltage
35V
Min Input Voltage
17V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
100mA
Max Output Voltage
15V
Min Output Voltage
15V
Max Supply Current
6.5mA
Mount
Through Hole
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed, Adjustable
Output Voltage
15V
Package Quantity
2500
Packaging
Bulk
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
39dB
Quiescent Current
6.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
10%
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L15ACZ Datasheet
Download the complete datasheet for Stmicroelectronics L78L15ACZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

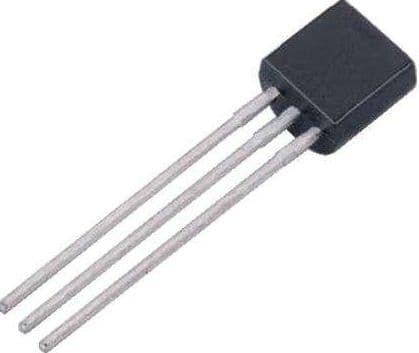

Product Images
