PackageTO-220
MountingThrough Hole
PolarityNegative
Quick Jump:
Technical Specifications
Stmicroelectronics L7915ACV-DG technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-220 |
| Dropout Voltage | 1.1V |
| Max Input Voltage | -35V |
| Min Input Voltage | -17.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | -15V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Negative |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 3mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L7915ACV-DG Datasheet
Download the complete datasheet for Stmicroelectronics L7915ACV-DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

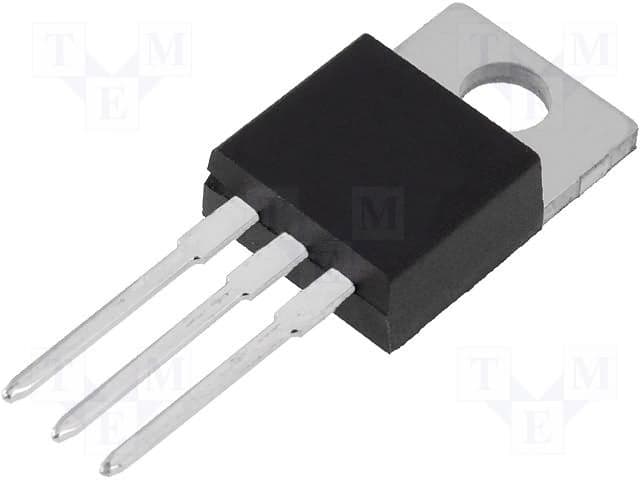

Product Images
