PackageTO-226-3
MountingThrough Hole
PolarityNegative
Quick Jump:
Technical Specifications
Stmicroelectronics L79L06ACZ technical specifications.
General
| Package/Case | TO-226-3 |
| Lead Free | Lead Free |
| Max Input Voltage | -30V |
| Min Input Voltage | -12V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Min Output Voltage | -6V |
| Max Supply Current | 6mA |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Negative |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | -6V |
| Package Quantity | 2500 |
| Packaging | Bulk |
| Polarity | Negative |
| Power Supply Rejection Ratio (PSRR) | 46dB |
| Quiescent Current | 5.5mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L79L06ACZ Datasheet
Download the complete datasheet for Stmicroelectronics L79L06ACZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

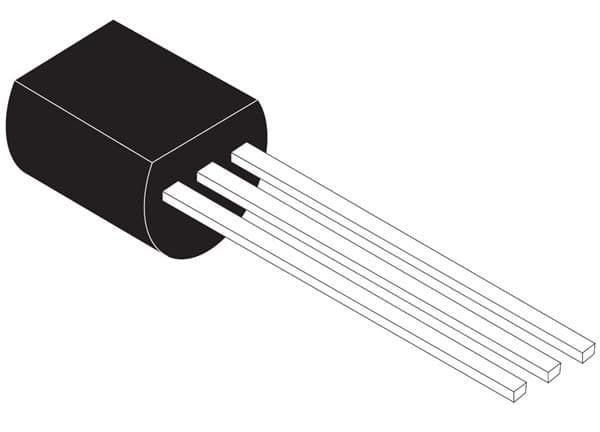

Product Images
