Adjustable positive linear voltage regulator with a 5A maximum output current. Features a low dropout voltage of 1.3V and a 1% output voltage accuracy. Operates with input voltages from 4.25V to 30V, providing an adjustable output voltage up to 28V. This through-hole component is housed in a TO package, with a reference voltage of 1.25V and a maximum operating temperature of 125°C.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD1084V technical specifications.
General
Accuracy
1%
Package/Case
TO
Dropout Voltage
1.3V
Height
9.15mm
Input Bias Current
5mA
Lead Free
Lead Free
Length
10.4mm
Max Input Voltage
30V
Min Input Voltage
4.25V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Min Output Voltage
2.5V
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Current
5A
Output Type
Adjustable
Output Voltage
28V
Output Voltage Accuracy
1%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.25V
RoHS Compliant
Yes
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD1084V Datasheet
Download the complete datasheet for Stmicroelectronics LD1084V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

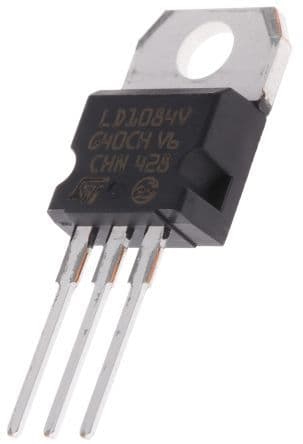

Product Images
