1.5A fixed positive linear voltage regulator with 2.5V output voltage. Features 1% accuracy and a low dropout voltage of 1.3V. Operates with a maximum input voltage of 30V and a maximum output current of 1.5A. Packaged in a TO-252 surface mount case, this RoHS compliant component is suitable for a wide temperature range of -40°C to 125°C.
PackageTO-252
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD1086DT25TR technical specifications.
General
Accuracy
1%
Package/Case
TO-252
Dropout Voltage
1.3V
Height
2.4mm
Input Bias Current
5mA
Lead Free
Lead Free
Length
6.6mm
Max Input Voltage
30V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
10mA
RoHS Compliant
Yes
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD1086DT25TR Datasheet
Download the complete datasheet for Stmicroelectronics LD1086DT25TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

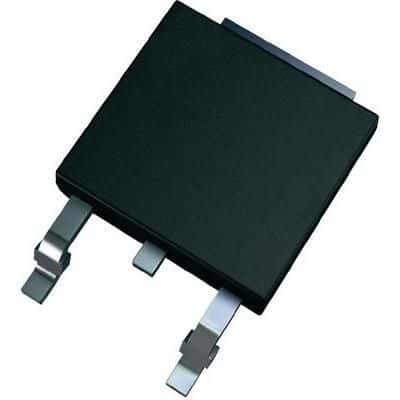

Product Images
