Low dropout positive voltage regulator, 1.5A output current, 3.3V fixed output voltage with 1% accuracy. Features a 1.3V dropout voltage, 6.3V minimum input voltage, and a maximum input voltage of 30V. Packaged in a TO-252 surface mount case, this RoHS compliant component operates from -40°C to 125°C.
PackageTO-252
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD1086DT33TR technical specifications.
General
Accuracy
1%
Package/Case
TO-252
Dropout Voltage
1.3V
Height
2.4mm
Input Bias Current
5mA
Lead Free
Lead Free
Length
6.6mm
Max Input Voltage
30V
Min Input Voltage
6.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Cut Tape
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD1086DT33TR Datasheet
Download the complete datasheet for Stmicroelectronics LD1086DT33TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

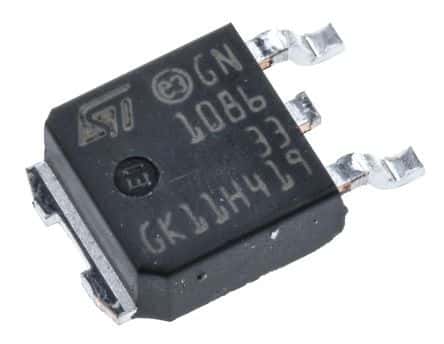

Product Images
