Positive fixed low drop voltage regulator, offering 1.2V output voltage with 1% accuracy. Features a maximum output current of 1.3A and a maximum input voltage of 15V. This surface mount component, housed in a SOT-223 package, operates from -40°C to 125°C and boasts a Power Supply Rejection Ratio (PSRR) of 75dB. Designed for lead-free and RoHS compliant applications.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD1117S12CTR technical specifications.
General
Accuracy
1%
Package/Case
SOT-223
Height
1.8mm
Input Bias Current
5mA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
15V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.3A
Min Output Voltage
1.2V
Max Power Dissipation
12W
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
800mA
Output Type
Fixed
Output Voltage
1.2V
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
5mA
Reference Voltage
1.224V
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD1117S12CTR Datasheet
Download the complete datasheet for Stmicroelectronics LD1117S12CTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

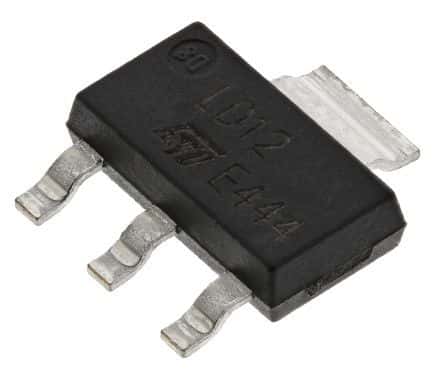

Product Images
