Adjustable and fixed low drop positive voltage regulator, an integrated circuit for power management. Features 1.3A maximum output current, 15V maximum output voltage, and a 1.25V minimum output voltage. Offers 1% accuracy and a low dropout voltage of 1.1V. Operates within a temperature range of 0°C to 125°C with a maximum power dissipation of 12W. Through-hole mounting in a TO package, this RoHS compliant component provides a single positive output.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD1117V technical specifications.
General
Accuracy
1%
Package/Case
TO
Dropout Voltage
1.1V
Height
9.15mm
Input Bias Current
5mA
Lead Free
Lead Free
Length
10.4mm
Max Input Voltage
15V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.3A
Max Output Voltage
15V
Min Output Voltage
1.25V
Max Power Dissipation
12W
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
800mA
Output Type
Adjustable
Output Voltage
15V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
5mA
Reach SVHC Compliant
No
Reference Voltage
1.26V
RoHS Compliant
Yes
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD1117V Datasheet
Download the complete datasheet for Stmicroelectronics LD1117V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

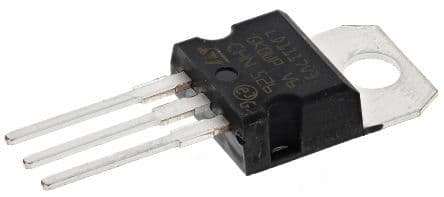

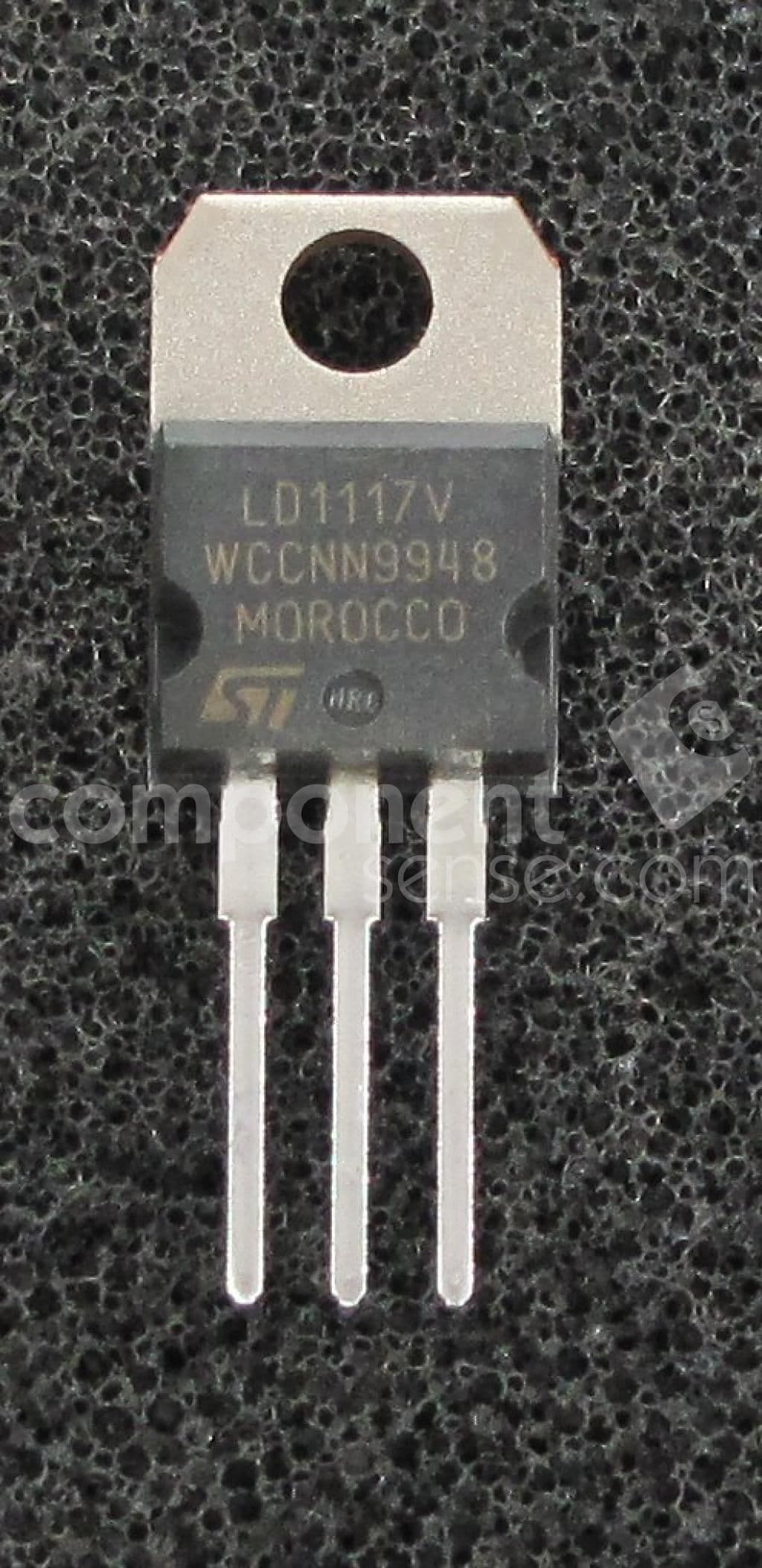

Product Images
