Positive fixed 3.3V output voltage regulator with 1.3A maximum output current and 1% output voltage accuracy. Features a 1.1V dropout voltage, 15V maximum input voltage, and 12W maximum power dissipation. Operates from 0°C to 125°C with a 75dB power supply rejection ratio. Through-hole mount package, lead-free and RoHS compliant.
PackageTO
Current5mA
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD1117V33 technical specifications.
General
Accuracy
1%
Package/Case
TO
Dropout Voltage
1.1V
Height
9.15mm
Input Bias Current
5mA
Lead Free
Lead Free
Length
10.4mm
Max Input Voltage
15V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.3A
Min Output Voltage
3.3V
Max Power Dissipation
12W
Mount
Through Hole
Nominal Input Voltage
3.3V
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.3A
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Package Quantity
1000
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
12W
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD1117V33 Datasheet
Download the complete datasheet for Stmicroelectronics LD1117V33 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

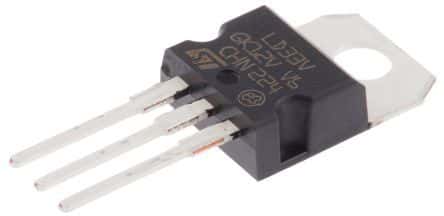

Product Images
