PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD1117V33-DG technical specifications.
General
| Accuracy | 1% |
| Package/Case | TO-220-3 |
| Max Input Voltage | 15V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.3A |
| Min Output Voltage | 3.3V |
| Max Power Dissipation | 12W |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 800mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | 3.3V |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Quiescent Current | 10mA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LD1117V33-DG Datasheet
Download the complete datasheet for Stmicroelectronics LD1117V33-DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

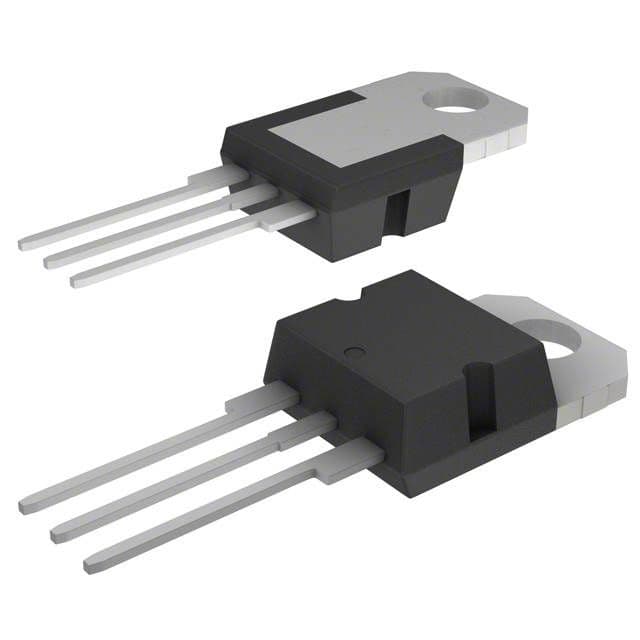

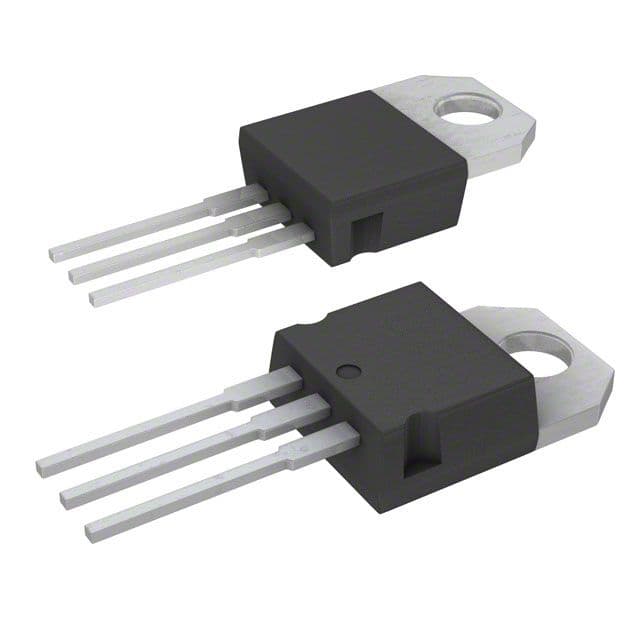

Product Images
