PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD1117V33C-DG technical specifications.
General
Accuracy
2%
Package/Case
TO-220-3
Dropout Voltage
1.1V
Max Input Voltage
15V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.3A
Max Power Dissipation
12W
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD1117V33C-DG Datasheet
Download the complete datasheet for Stmicroelectronics LD1117V33C-DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

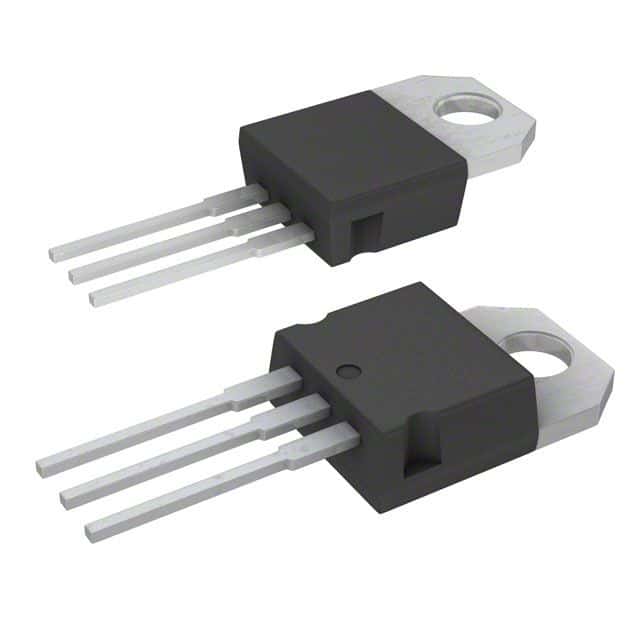

Product Images
