1.5A adjustable positive linear voltage regulator with 1% output voltage accuracy. Features a very low dropout voltage, 1.5A maximum output current, and a wide input voltage range from 2.5V to 30V. Operates with a quiescent current of 40mA and a maximum supply current of 80mA. Packaged in a TO-252-5 surface mount case, measuring 6.6mm x 6.2mm x 2.4mm, suitable for tape and reel packaging. Offers a PSRR of 75dB and operates across a temperature range of -40°C to 125°C.
PackageTO-252-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD29150PTR technical specifications.
General
Accuracy
1%
Package/Case
TO-252-5
Height
2.4mm
Input Bias Current
15mA
Lead Free
Lead Free
Length
6.6mm
Max Input Voltage
30V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
13.3V
Min Output Voltage
1.23V
Max Supply Current
80mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Adjustable
Output Voltage
15V
Output Voltage Accuracy
1%
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
40mA
Radiation Hardening
No
Reference Voltage
1.2423V
Width
6.2mm
Compliance
RoHS
Not CompliantNo
Datasheet
Stmicroelectronics LD29150PTR Datasheet
Download the complete datasheet for Stmicroelectronics LD29150PTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

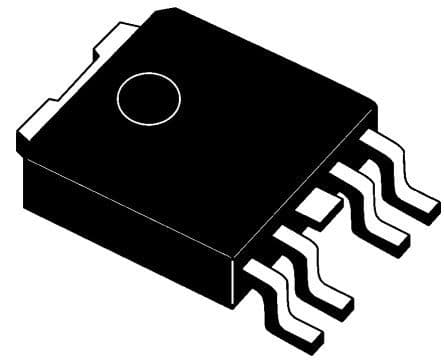

Product Images
