Stmicroelectronics
LD2985AM28R
2.8V FIXED POSITIVE LDO REGULATOR, 0.575V DROPOUT, PDSO5, ROHS COMPLIANT, SOT-23, 5 PIN
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LD2985AM28R technical specifications.
General
Package/Case
SOT-23-5
Input Bias Current
80uA
Lead Free
Lead Free
Max Input Voltage
16V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
2.8V
Max Supply Current
4mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
2.8V
Package Quantity
3000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
45dB
Quiescent Current
150uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD2985AM28R Datasheet
Download the complete datasheet for Stmicroelectronics LD2985AM28R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

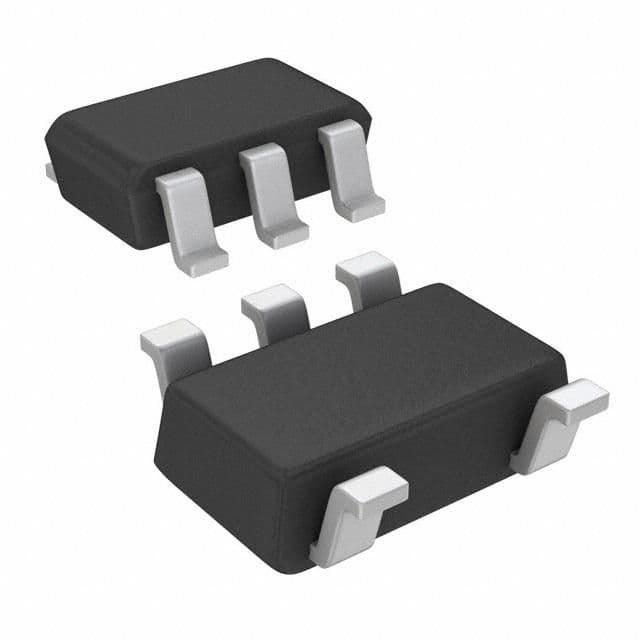

Product Images
