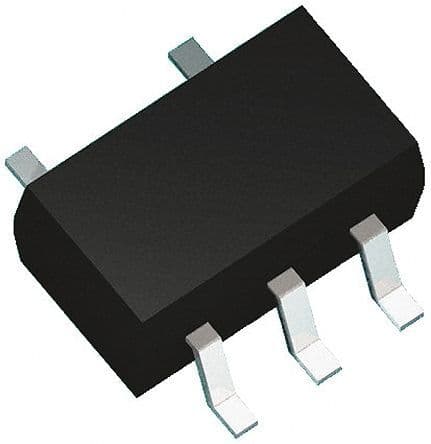

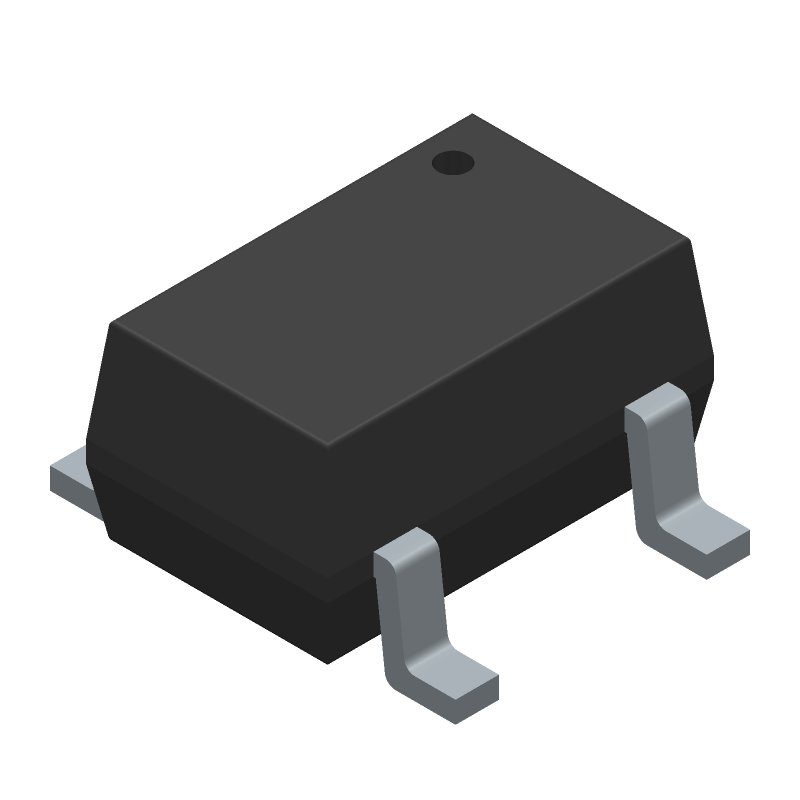

150mA fixed output linear voltage regulator with 3.3V nominal output. Features low noise, high 54dB PSRR, and a 150mV dropout voltage. Operates from 2.3V to 5.5V input, delivering up to 150mA output current with 1.8% accuracy. Packaged in a compact SOT-323 surface mount case, this RoHS compliant component offers a quiescent current of 60uA and operates across a -40°C to 125°C temperature range.
PackageSOT-323
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD59015C33R technical specifications.
General
Accuracy
1.8%
Package/Case
SOT-323
Dropout Voltage
150mV
Height
1mm
Lead Free
Lead Free
Length
2.2mm
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
54dB
Quiescent Current
60uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD59015C33R Datasheet
Download the complete datasheet for Stmicroelectronics LD59015C33R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
