1A adjustable positive linear voltage regulator IC featuring a low 200mV dropout voltage and 1% accuracy. This surface mount component operates from 2.6V to 16V input, providing an adjustable output voltage from 800mV up to 12V. With a maximum output current of 1A, it offers a 55dB PSRR and a quiescent current of 800uA. The compact DFN package measures 2mm x 2mm x 0.95mm, suitable for tape and reel packaging.
PackageDFN
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LDFPVR technical specifications.
General
Accuracy
1%
Package/Case
DFN
Dropout Voltage
200mV
Height
0.95mm
Lead Free
Lead Free
Length
2mm
Max Input Voltage
16V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
12V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Operating Supply Current
200uA
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
12V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
800uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
800mV
RoHS Compliant
Yes
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LDFPVR Datasheet
Download the complete datasheet for Stmicroelectronics LDFPVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

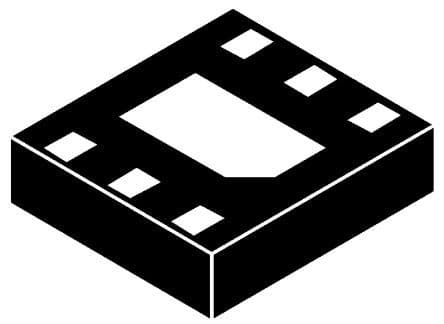

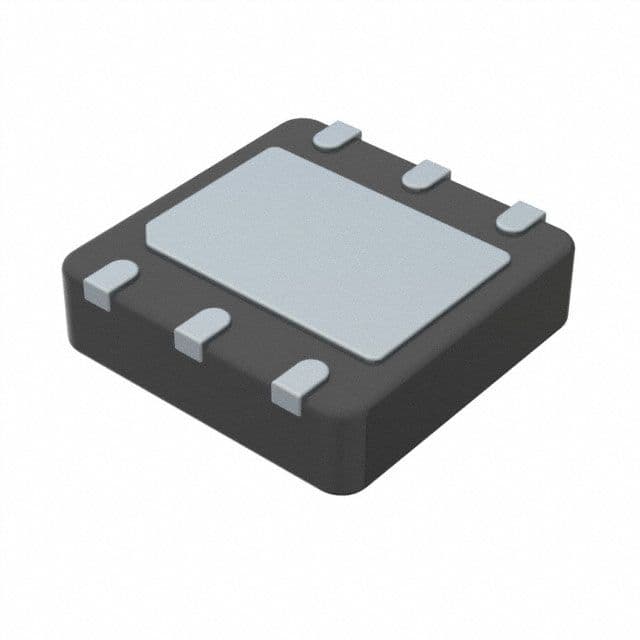

Product Images
