200mA fixed positive linear voltage regulator with 1.2V output voltage. Features 60µA quiescent current and 55dB PSRR for low noise operation. Operates from 1.9V to 5.5V input, delivering up to 200mA output current with 2% accuracy. Surface mount SOT-23-5 package, lead-free and RoHS compliant, suitable for -40°C to 125°C operation.
PackageSOT-23-5
Current50uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LDK120M12R technical specifications.
General
Accuracy
2%
Package/Case
SOT-23-5
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
1.9V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Min Output Voltage
1.2V
Max Supply Current
100uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed
Output Voltage
1.2V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
60uA
RoHS Compliant
Yes
Supply Current
50uA
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LDK120M12R Datasheet
Download the complete datasheet for Stmicroelectronics LDK120M12R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

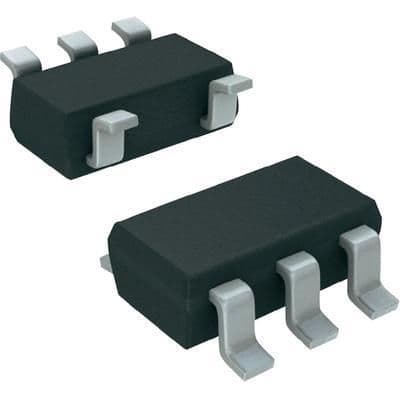

Product Images
