Positive fixed output linear voltage regulator, offering 200mA maximum output current with a low 90µA quiescent current. Features a 200mV dropout voltage and 5V nominal output voltage, with 2% accuracy. Operates from a 2.5V to 13.2V input voltage range and boasts a 50dB Power Supply Rejection Ratio (PSRR). Packaged in a compact SOT-23-5 surface mount case, this RoHS compliant component is ideal for power management applications.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LDK220M50R technical specifications.
General
Accuracy
2%
Package/Case
SOT-23-5
Dropout Voltage
200mV
Height
1.3mm
Lead Free
Lead Free
Length
2.95mm
Max Input Voltage
13.2V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Power Dissipation
500mW
Max Supply Current
100uA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed, Adjustable
Output Voltage
5V
Package Quantity
6000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
50dB
Quiescent Current
90uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.001058oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LDK220M50R Datasheet
Download the complete datasheet for Stmicroelectronics LDK220M50R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

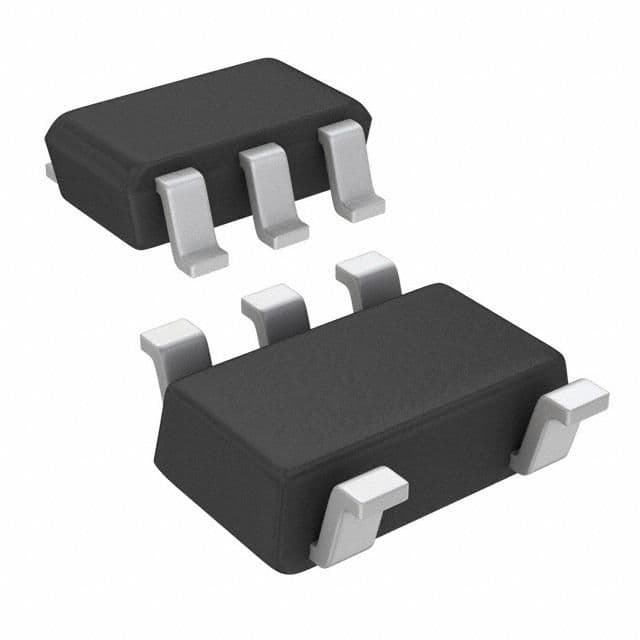

Product Images
