Technical Specifications
Stmicroelectronics LE33ABZ technical specifications.
General
Package/Case
TO-226-3
Input Bias Current
1.5mA
Lead Free
Lead Free
Max Input Voltage
18V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
3.3V
Max Supply Current
3mA
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
2500
Packaging
Bulk
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
1mA
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Stmicroelectronics LE33ABZ Datasheet
Download the complete datasheet for Stmicroelectronics LE33ABZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

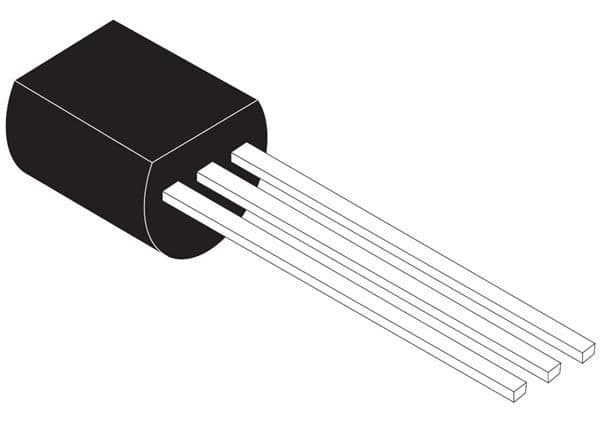

Product Images
