Stmicroelectronics
LE50CZ-AP
5V FIXED POSITIVE LDO REGULATOR, 0.5V DROPOUT, BCY3, LEAD FREE, TO-92, 3 PIN
PackageTO-226-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics LE50CZ-AP technical specifications.
General
Package/Case
TO-226-3
Input Bias Current
1.5mA
Lead Free
Lead Free
Max Input Voltage
18V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
5V
Max Supply Current
3mA
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
1mA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LE50CZ-AP Datasheet
Download the complete datasheet for Stmicroelectronics LE50CZ-AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

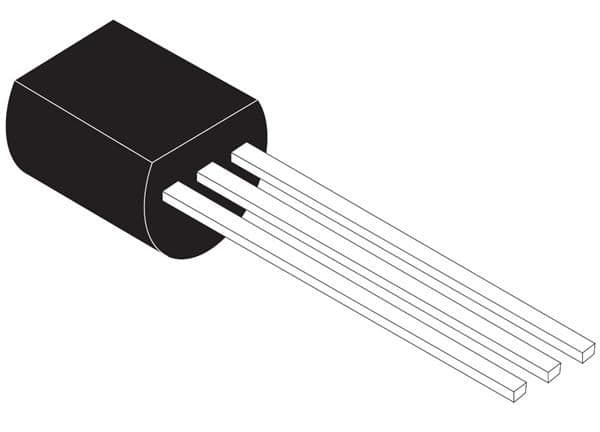

Product Images
