Technical Specifications
Stmicroelectronics LE80ABZ-AP technical specifications.
General
Package/Case
TO-226-3
Input Bias Current
1.7mA
Lead Free
Lead Free
Max Input Voltage
18V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
8V
Max Supply Current
3.6mA
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
8V
Package Quantity
2000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
57dB
Quiescent Current
1.6mA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LE80ABZ-AP Datasheet
Download the complete datasheet for Stmicroelectronics LE80ABZ-AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

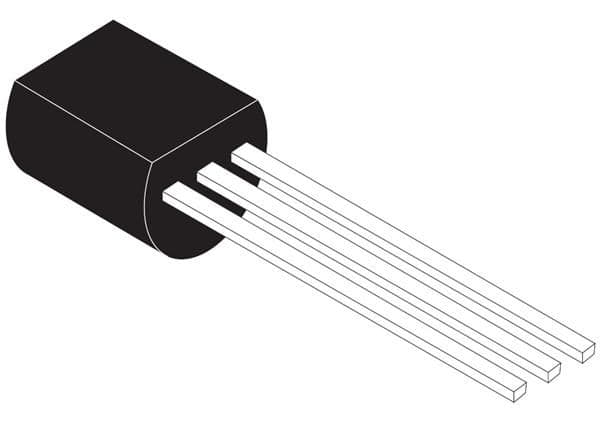

Product Images
