Monolithic step-down current source driver with synchronous rectification, capable of 4A output current. Features PWM dimming and an 850kHz operating frequency. Input voltage range is 3V to 18V, with a maximum output current of 4A. Packaged in a VQFN surface mount case, this component operates from -40°C to 150°C.
Frequency850kHz
PackageVQFN
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
Stmicroelectronics LED2001PUR technical specifications.
General
Package/Case
VQFN
Dimming
PWM
Frequency
850kHz
Height
0.95mm
Lead Free
Lead Free
Length
4.1mm
Max Duty Cycle
100%
Max Input Voltage
18V
Min Input Voltage
3V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Output Voltage
-1V
Min Output Voltage
18V
Max Supply Current
2.5mA
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Outputs
1
Number of Segments
3
Operating Frequency
850 kHz
Output Current
4A
Output Current per Channel
4A
Output Type
Adjustable
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2W
Quiescent Current
2.5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LED2001
Switching Frequency-Max
1MHz
Width
4.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LED2001PUR Datasheet
Download the complete datasheet for Stmicroelectronics LED2001PUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

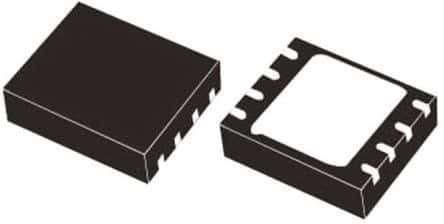

Product Images
