Single-channel LED driver with integrated boost controller, supporting analog and PWM dimming. Features a 1MHz operating frequency and SEPIC/Boost topology. Delivers up to 60V output voltage and 75mA output current via an OPEN-DRAIN output. Operates from a 5.5V to 36V input voltage range and is available in a surface-mount HTSSOP package.
Frequency1MHz
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LED6001 technical specifications.
General
Package/Case
HTSSOP
Dimming
Analog, PWM
Frequency
1MHz
Height
1.05mm
Length
5.1mm
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
5.5V
Max Input Voltage
36V
Min Input Voltage
5.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Voltage
60V
Max Supply Current
7mA
Max Supply Voltage
36V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Number of Segments
1
Operating Frequency
1 MHz
Output Current
75mA
Output Type
OPEN-DRAIN
Output Voltage
60V
Package Quantity
96
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Topology
SEPIC, Boost
Weight
0.002212oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LED6001 Datasheet
Download the complete datasheet for Stmicroelectronics LED6001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

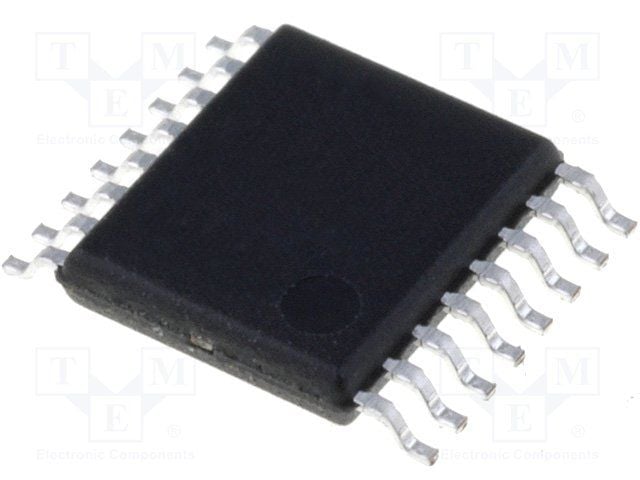

Product Images
