High-performance 3-axis MEMS accelerometer with ultra-low power consumption. Features selectable full scales of ±2g, ±4g, ±8g, and ±16g, and a 5kHz bandwidth. Digital output via high-speed I2C or SPI interfaces. Includes embedded FIFO buffer for efficient data management. Operates from 1.71V to 3.6V with a typical supply current of 11µA. Packaged in a compact 3x3x1.0mm LGA, this RoHS compliant sensor is ideal for demanding applications.
PackageLGA
Quick Jump:
Technical Specifications
Stmicroelectronics LIS3DHTR technical specifications.
General
Axis
X, Y, Z
Bandwidth
5kHz
Package/Case
LGA
Depth
3mm
Height
1mm
Interface
I2C, SPI
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
3.6V
Min Supply Voltage (DC)
1.71V
Max Supply Voltage
3.6V
Min Supply Voltage
1.71V
Operating Supply Current
11uA
Operating Supply Voltage
2.5V
Output Type
Digital
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sensor Type
3 Axis
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LIS3DHTR Datasheet
Download the complete datasheet for Stmicroelectronics LIS3DHTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

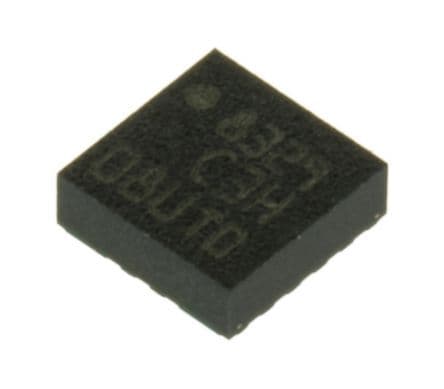

Product Images
