PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LM258QT technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | DFN |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 1.1MHz |
| Input Bias Current | 20nA |
| Input Offset Voltage (Vos) | 1mV |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Operating Supply Current | 700uA |
| Output Current per Channel | 60mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.6V/µs |
| Voltage Gain | 100dB |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM258QT Datasheet
Download the complete datasheet for Stmicroelectronics LM258QT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

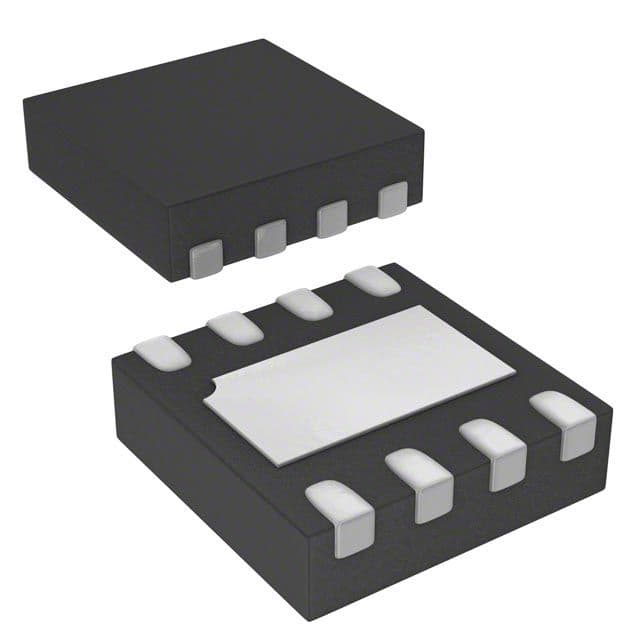

Product Images
