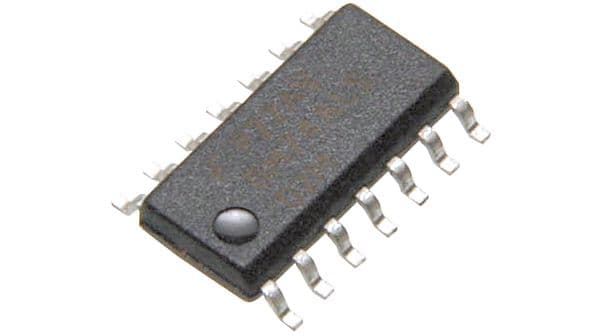

Quad operational amplifier featuring a 1.3MHz bandwidth and 100dB voltage gain. This general-purpose, bipolar op-amp offers a 0.4V/µs slew rate and operates from a wide supply voltage range of 1.5V to 30V, with a typical dual supply of 15V. It includes four independent amplifiers, each capable of 20mA output current, and is housed in a surface-mount SO package. Key specifications include a 70dB CMRR, 150nA input bias current, and 7mV input offset voltage, with a maximum supply current of 1.2mA.
PackageSO
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LM2902DT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.3MHz
Package/Case
SO
Common Mode Rejection Ratio
70dB
Dual Supply Voltage
9V
Gain Bandwidth Product
1.3MHz
Height
1.65mm
Input Bias Current
150nA
Input Offset Voltage (Vos)
7mV
Input Offset Voltage-Max
7mV
Lead Free
Lead Free
Length
8.75mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
1.2mA
Max Supply Voltage
30V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.5mA
Operating Supply Voltage
15V
Output Current
40mA
Output Current per Channel
20mA
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.4V/µs
Slew Rate-Nom
0.4V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1.3MHz
Voltage Gain
100dB
Width
4mm
Compliance
RoHS
Compliant
