Quad operational amplifier featuring a 1.3MHz gain bandwidth product and 0.4V/µs slew rate. This general-purpose amplifier supports single or dual supply operation from 3V to 30V, with a maximum dual supply voltage of 15V. It offers a 70dB common mode rejection ratio and 100dB voltage gain, with an input bias current of 20nA and input offset voltage of 2mV. Packaged in a 14-pin SOIC for surface mounting, this RoHS compliant component operates within a 0°C to 70°C temperature range.
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LM324DT technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SO |
| Common Mode Rejection Ratio | 70dB |
| Dual Supply Voltage | 12V |
| Gain Bandwidth Product | 1.3MHz |
| Height | 1.65mm |
| Input Bias Current | 20nA |
| Input Offset Voltage (Vos) | 2mV |
| Input Voltage Noise Density | 40nV/sqrt Hz |
| Lead Free | Lead Free |
| Length | 8.75mm |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 400mW |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Operating Supply Current | 1.5mA |
| Operating Supply Voltage | 15V |
| Output Current per Channel | 70mA |
| Package Quantity | 2500 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Slew Rate | 0.4V/µs |
| Supply Type | Single, Dual |
| Technology | BIPOLAR |
| Voltage Gain | 100dB |
| Weight | 0.009143oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM324DT Datasheet
Download the complete datasheet for Stmicroelectronics LM324DT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

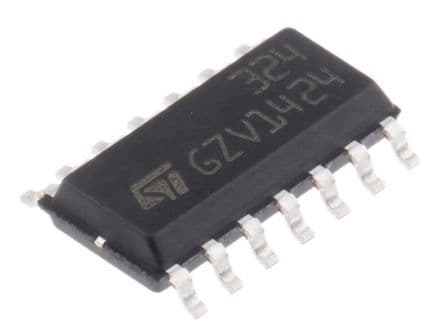

Product Images
