Quad general-purpose comparator IC featuring four independent channels. Operates with dual supply voltages from 1V to 16V or single supply from 2V to 32V. Offers TTL output compatibility and a maximum output current of 16mA. Input bias current is 250nA with an input offset voltage of 5mV. Packaged in a 14-pin SOIC for surface mounting, with a maximum power dissipation of 830mW.
PackageSO
Current2mA
MountingSurface Mount
Power830mW
Quick Jump:
Technical Specifications
Stmicroelectronics LM339DT technical specifications.
General
| Package/Case | SO |
| Height | 1.65mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Length | 8.75mm |
| Max Dual Supply Voltage | 16V |
| Min Dual Supply Voltage | 1V |
| Max Input Current | 250nA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 830mW |
| Max Supply Current | 2mA |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Natural Thermal Resistance | 105°C/W |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Output Compatibility | CMOS |
| Output Current | 16mA |
| Output Current per Channel | 100pA |
| Output Type | TTL |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 830mW |
| Propagation Delay | 1.3us |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1.3us |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Technology | BIPOLAR |
| Turn-On Delay Time | 1.3us |
| Type | General Purpose |
| Voltage Gain | 106.02dB |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM339DT Datasheet
Download the complete datasheet for Stmicroelectronics LM339DT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

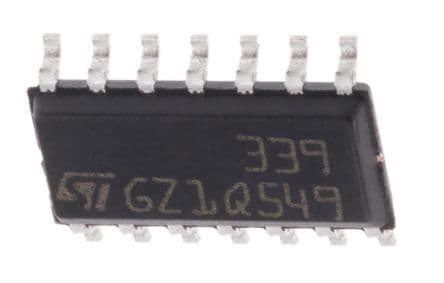

Product Images
