Dual general-purpose operational amplifier featuring a 1.1MHz gain bandwidth product and 0.6V/µs slew rate. This surface-mount IC offers a low input bias current of 50nA and a common mode rejection ratio of 70dB. It operates with dual supply voltages ranging from 1.5V to 15V, with a maximum supply voltage of 30V and a typical supply current of 700µA. The SOIC package contains two independent amplifiers, suitable for applications requiring a voltage gain of 100dB.
PackageSOIC
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LM358ADT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.1MHz
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Dual Supply Voltage
9V
Gain Bandwidth Product
1.1MHz
Height
1.25mm
Input Bias Current
50nA
Input Offset Voltage (Vos)
3mV
Input Offset Voltage-Max
3mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
1.2mA
Max Supply Voltage
30V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
700uA
Operating Supply Voltage
15V
Output Current
40mA
Output Current per Channel
60mA
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.6V/µs
Slew Rate-Nom
0.6V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1.1MHz
Voltage Gain
100dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LM358ADT Datasheet
Download the complete datasheet for Stmicroelectronics LM358ADT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

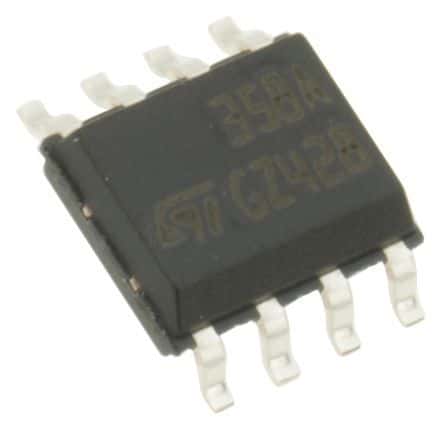

Product Images
