1Kb serial I²C bus EEPROM for surface mount applications. Features a 2-wire serial interface with a maximum frequency of 400kHz and a fast 900ns access time. Operates across a wide temperature range of -40°C to 85°C with supply voltages from 1.8V to 5.5V. This lead-free, RoHS compliant memory component is organized as 128x8 and offers write protection. Packaged in a compact TSSOP for efficient integration.
Frequency400kHz
PackageTSSOP
Current800uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M24C01-RDW6TP technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
TSSOP
Density
1Kb
Frequency
400kHz
Height
1mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
3mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Organization
128X8
Package Quantity
1
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
800uA
Width
4.4mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M24C01-RDW6TP Datasheet
Download the complete datasheet for Stmicroelectronics M24C01-RDW6TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

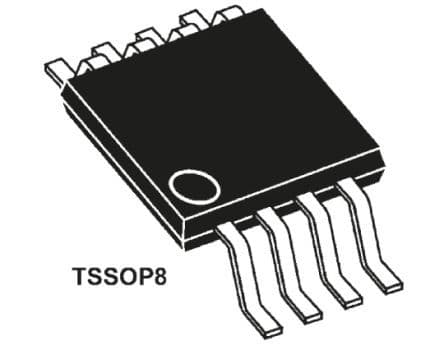

Product Images
