32 Kbit serial I²C bus EEPROM, organized as 4K x 8, offers a 2-wire serial interface with a maximum frequency of 1MHz. Featuring a maximum access time of 450ns, this surface mount component operates within a voltage range of 1.7V to 5.5V and supports a programming voltage of 5.5V. It is RoHS compliant, lead-free, and designed for operation between -40°C and 85°C, with a typical supply current of 3mA and write protection capabilities.
Frequency400kHz
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M24C32-FMC6TG technical specifications.
General
Access Time-Max
450ns
Density
32Kb
Frequency
400kHz
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Max Frequency
1MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Type
EEPROM,
Min Supply Voltage
1.7V
Mount
Surface Mount
Organization
4KX8
Package Quantity
5000
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M24C32-FMC6TG Datasheet
Download the complete datasheet for Stmicroelectronics M24C32-FMC6TG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

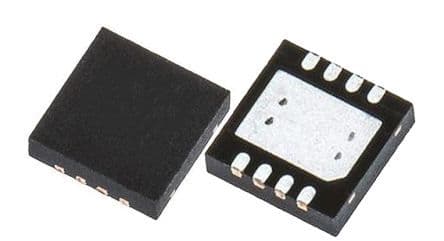

Product Images
