32 Kbit serial I²C bus EEPROM, organized as 4K x 8, offers non-volatile memory storage. Features a maximum operating frequency of 400kHz with a 900ns access time. Operates from 1.8V to 5.5V supply voltage and is available in a DFN surface mount package. This RoHS compliant component supports I²C serial interface and includes write protection.
Frequency400kHz
PackageDFN
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M24C32-RMB6TG technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
DFN
Density
32Kb
Frequency
400kHz
Height
0.53mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
2mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
32Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
4KX8
Package Quantity
2500
Packaging
Tape and Reel
Programming Voltage
5.5V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Termination
SMD/SMT
Width
3mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M24C32-RMB6TG Datasheet
Download the complete datasheet for Stmicroelectronics M24C32-RMB6TG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

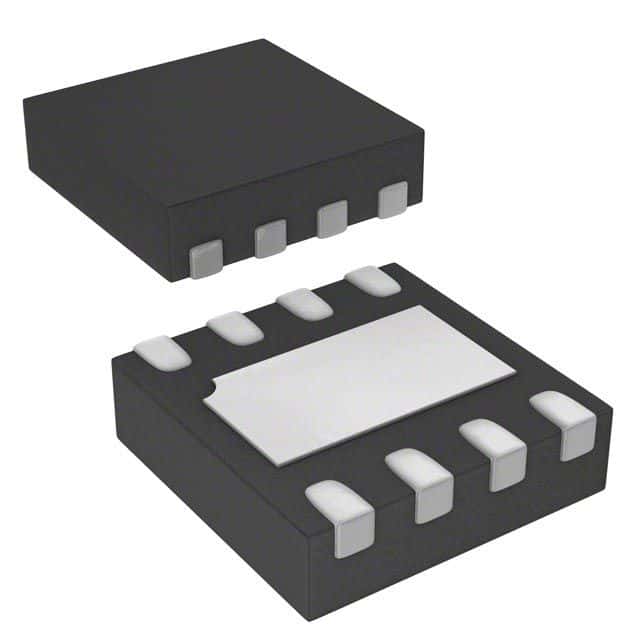

Product Images
