64 Kbit serial I²C bus EEPROM, offering 8K x 8 organization. Features a 2-wire serial interface with a maximum frequency of 400kHz. Operates across a wide temperature range from -40°C to 85°C, with supply voltages from 2.5V to 5.5V. Packaged in a compact TSSOP surface mount case, this lead-free and RoHS compliant memory component boasts a maximum access time of 450ns and includes write protection capabilities.
Frequency1MHz
PackageTSSOP
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M24C64-WDW6TP technical specifications.
General
Access Time
900ns
Access Time-Max
450ns
Package/Case
TSSOP
Density
64Kb
Frequency
1MHz
Height
1mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
3mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Memory Size
64Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
8KX8
Package Quantity
1
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Width
4.4mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M24C64-WDW6TP Datasheet
Download the complete datasheet for Stmicroelectronics M24C64-WDW6TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

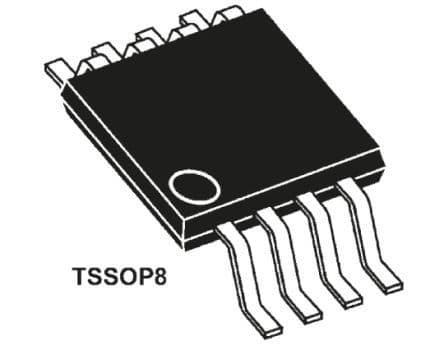

Product Images
