Low-power serial real-time clock (RTC) with alarm, featuring I2C and 2-wire serial interface. This QFN package surface-mount device operates with a 32.768kHz frequency, a supply voltage range of 1.3V to 4.4V, and a nominal supply current of 350nA. It includes 16B of non-volatile memory, supports YY-MM-DD-dd and HH:MM:SS:hh date and time formats, and offers two outputs. Designed for industrial temperature ranges from -40°C to 85°C, this RoHS compliant component is supplied on tape and reel.
Frequency32.768kHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M41T62Q6F technical specifications.
General
Package/Case
QFN
Date Format
YY-MM-DD-dd
Frequency
32.768kHz
Height
0.88mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
3mm
Logic Function
Clock
Max Operating Temperature
85°C
Memory Size
16B
Min Operating Temperature
-40°C
Max Supply Voltage
4.4V
Min Supply Voltage
1.3V
Mount
Surface Mount
Nominal Supply Current
350nA
Non-volatile Memory Size
16B
Number of Outputs
2
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RAM Size
16B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Timekeeper®
Supply Voltage-Nom
4.4V
Temperature Grade
INDUSTRIAL
Termination
SMD/SMT
Time Format
HH:MM:SS:hh
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M41T62Q6F Datasheet
Download the complete datasheet for Stmicroelectronics M41T62Q6F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

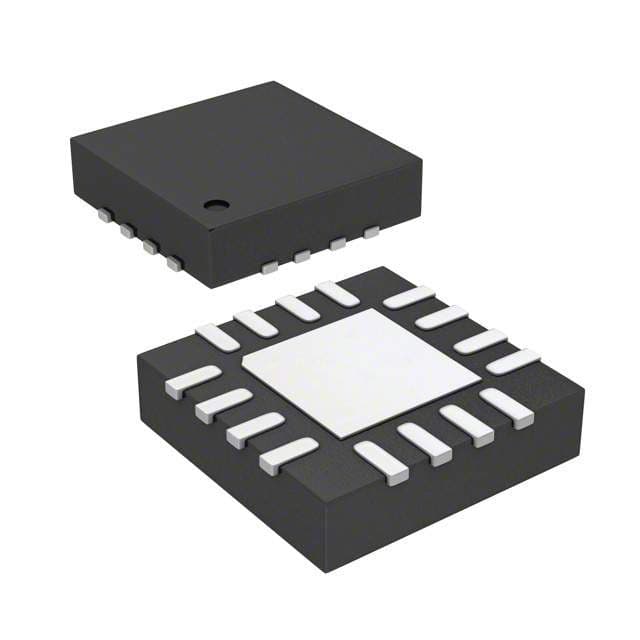

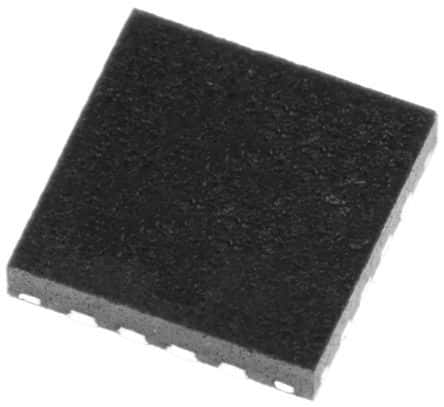

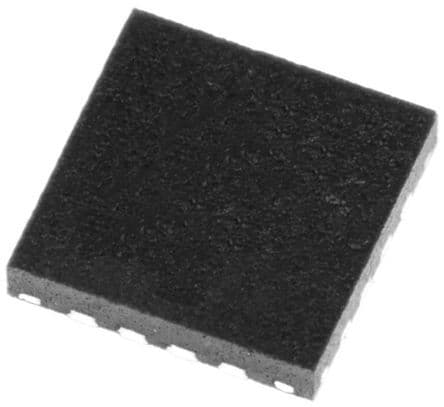

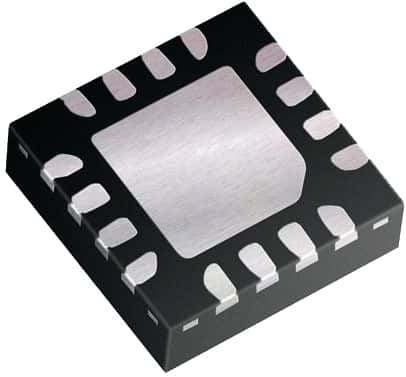

Product Images
