Parallel interface Real Time Clock (RTC) with integrated 2Kbyte NV Timekeeping RAM. Features include YY-MM-DD-dd date format, HH:MM:SS time format, and a 150ns access time. Operates from a 4.5V to 5.5V supply voltage with a nominal 5V. This through-hole component is housed in a 24-pin DIP package, suitable for commercial temperature grades (0°C to 70°C). RoHS compliant and lead-free.
Frequency150GHz
PackageDIP
Current80mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M48T12-150PC1 technical specifications.
General
Access Time
150ns
Access Time-Max
150ns
Package/Case
DIP
Date Format
YY-MM-DD-dd
Frequency
150GHz
Height
8.89mm
Interface
Parallel
Lead Free
Lead Free
Length
34.8mm
Logic Function
Clock
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Through Hole
Operating Supply Voltage
5V
Package Quantity
14
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Timekeeper®
Supply Current
80mA
Supply Voltage-Nom
5.5V
Temperature Grade
COMMERCIAL
Time Format
HH:MM:SS
Width
18.34mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M48T12-150PC1 Datasheet
Download the complete datasheet for Stmicroelectronics M48T12-150PC1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

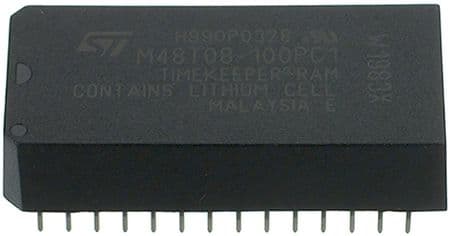

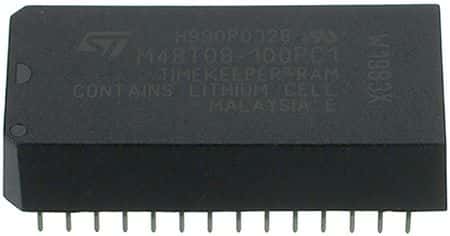

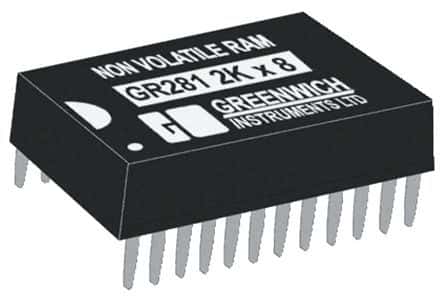

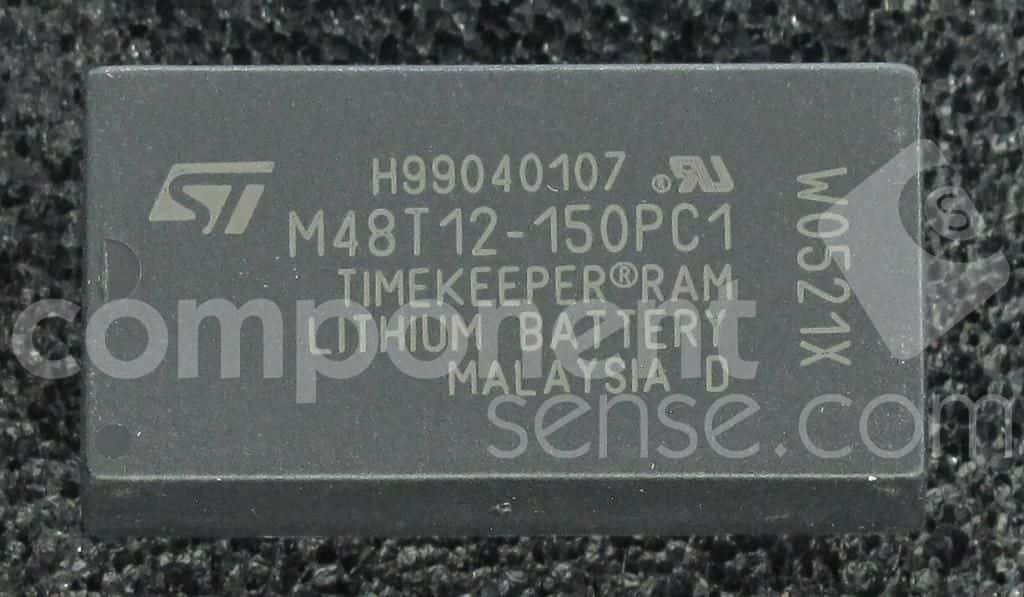

Product Images
