Real Time Clock (RTC) IC with parallel interface, featuring an 8KB NV Timekeeping RAM. Provides clock and calendar functions with YY-MM-DD-dd date and HH:MM:SS time formats. Operates with a 5V supply voltage (4.5V to 5.5V range) and offers a maximum access time of 70ns. This through-hole mounted component is packaged in a 28-pin PDIP and is RoHS compliant.
Frequency70GHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M48T58Y-70PC1 technical specifications.
General
Access Time-Max
70ns
Package/Case
PDIP
Date Format
YY-MM-DD-dd
Frequency
70GHz
Height
8.89mm
Interface
Parallel
Lead Free
Lead Free
Length
39.88mm
Logic Function
Clock
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
8000B
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Through Hole
Operating Supply Voltage
5V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Timekeeper®
Supply Voltage-Nom
5V
Temperature Grade
COMMERCIAL
Time Format
HH:MM:SS
Weight
0.147798oz
Width
18.34mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M48T58Y-70PC1 Datasheet
Download the complete datasheet for Stmicroelectronics M48T58Y-70PC1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

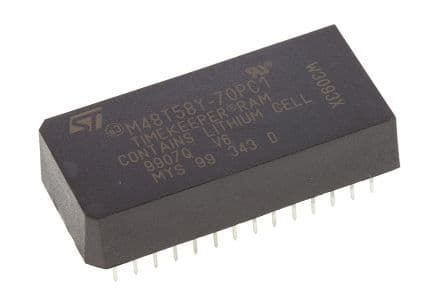

Product Images
