Dual monostable multivibrator IC, featuring two independent circuits. CMOS technology operates from 2V to 6V supply voltage, with a nominal 5V. Offers a propagation delay of 355ns and turn-on delay time of 36ns. Packaged in a 16-pin TSSOP with dimensions of 5mm length, 4.4mm width, and 1mm height. Supports surface mount installation and is RoHS compliant.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M74HC123TTR technical specifications.
General
Package/Case
TSSOP
Height
1mm
High Level Output Current
-5.2mA
Independent Circuits
2
Lead Free
Lead Free
Length
5mm
Logic Function
Multivibrator
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Max Supply Current
4uA
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Elements
2
Number of Inputs
2
Operating Supply Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
355ns
Quiescent Current
4uA
Radiation Hardening
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74HC
Supply Voltage-Nom
6V
Technology
CMOS
Turn-On Delay Time
36ns
Weight
0.006102oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M74HC123TTR Datasheet
Download the complete datasheet for Stmicroelectronics M74HC123TTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

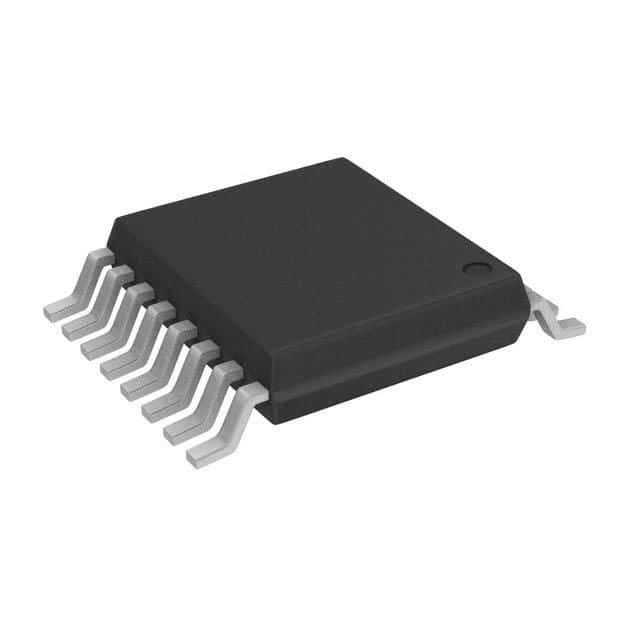

Product Images
