Dual 4-input NAND gate IC featuring CMOS technology. Operates with a supply voltage range of 2V to 6V, with a nominal 6V. Offers a high level output current of -5.2mA and a low level output current of 5.2mA. This through-hole component is housed in a PDIP-14 package and boasts a propagation delay of 20ns. RoHS compliant with a maximum operating temperature of 125°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M74HC20B1R technical specifications.
General
Package/Case
PDIP
High Level Output Current
-5.2mA
Lead Free
Lead Free
Logic Function
NAND GATE
Low Level Output Current
5.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
5.2mA
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Circuits
2
Number of Elements
2
Number of Functions
2
Number of Gates
2
Number of Inputs
4
Number of Outputs
1
Output Current
5.2mA
Package Quantity
1
Packaging
Rail/Tube
Propagation Delay
20ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Supply Voltage-Nom
6V
Technology
CMOS
Turn-On Delay Time
80ns
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M74HC20B1R Datasheet
Download the complete datasheet for Stmicroelectronics M74HC20B1R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

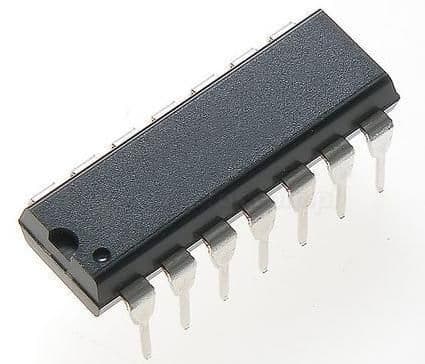

Product Images
