Dual 4-bit buffer/line driver with inverting, 3-state outputs. Features 8 channels, 8 input lines, and 8 output lines. Operates with a supply voltage range of 2V to 6V, supporting through-hole mounting in a 20-pin DIP package. Offers a maximum power dissipation of 500mW and a quiescent current of 4uA, with a propagation delay of 250ns. Designed for CMOS technology with a wide operating temperature range from -55°C to 125°C.
PackageDIP
MountingThrough Hole
PolarityInverting
Power500mW
Quick Jump:
Technical Specifications
Stmicroelectronics M74HC240B1R technical specifications.
General
Package/Case
DIP
Height
3.93mm
High Level Output Current
-7.8mA
Lead Free
Lead Free
Length
25.4mm
Logic Function
Buffer, Inverter
Low Level Output Current
7.8mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Bits
8
Number of Channels
8
Number of Circuits
2
Number of Elements
2
Number of Gates
8
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
3
Number of Outputs
8
Output Type
3-STATE
Package Quantity
1
Packaging
Rail/Tube
Polarity
Inverting
Power Dissipation
500mW
Propagation Delay
250ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Supply Voltage-Nom
6V
Technology
CMOS
Termination
Through Hole
Turn-On Delay Time
22ns
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M74HC240B1R Datasheet
Download the complete datasheet for Stmicroelectronics M74HC240B1R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

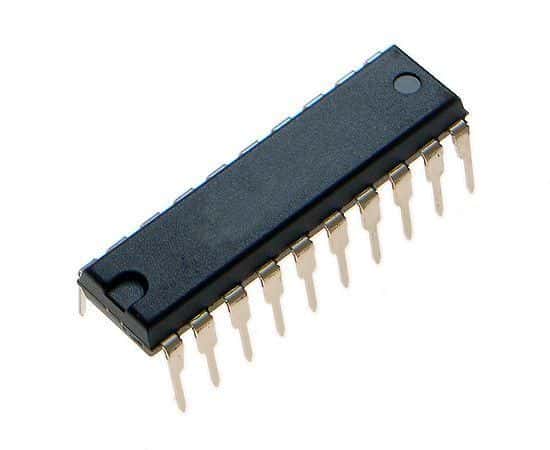

Product Images
