PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M74HCT02B1R technical specifications.
General
| Package/Case | PDIP |
| High Level Output Current | -4mA |
| Lead Free | Lead Free |
| Logic Function | NOR GATE |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Propagation Delay | 24ns |
| Quiescent Current | 1uA |
| RoHS Compliant | Yes |
| Series | 74HCT |
| Technology | CMOS |
| Turn-On Delay Time | 36ns |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M74HCT02B1R Datasheet
Download the complete datasheet for Stmicroelectronics M74HCT02B1R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

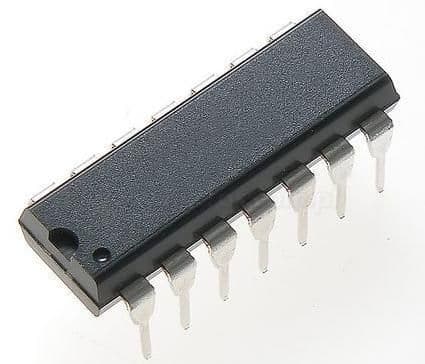

Product Images
