8-bit buffer/line driver with true, non-inverting output. Features 3-state outputs, 8 input lines, and 8 output lines. Operates from a 4.5V to 5.5V supply voltage with a typical 5V operating voltage. Supports through-hole mounting in a PDIP-20 package. Maximum operating temperature of 125°C.
PackageDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics M74HCT541B1R technical specifications.
General
| Package/Case | DIP |
| High Level Output Current | -6mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 6mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Channels | 8 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 8 |
| Number of Inputs | 8 |
| Number of Output Lines | 3 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 28ns |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74HCT |
| Technology | CMOS |
| Turn-On Delay Time | 51ns |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M74HCT541B1R Datasheet
Download the complete datasheet for Stmicroelectronics M74HCT541B1R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

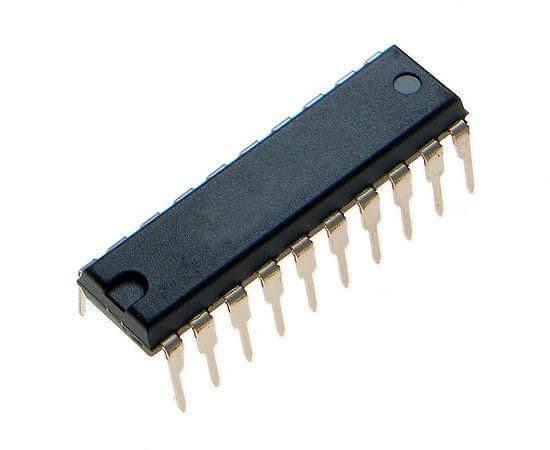

Product Images
