8-bit D-type flip-flop with true output, featuring positive edge clock triggering and 3-state output. This through-hole component operates with a 5V supply voltage, supporting a frequency up to 21MHz. It offers a high level output current of -6mA and a low level output current of 6mA, with a propagation delay of 54ns. Designed for a wide operating temperature range from -55°C to 125°C, this RoHS compliant integrated circuit is packaged in a 20-pin DIP.
Frequency21MHz
PackageDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics M74HCT574B1R technical specifications.
General
| Package/Case | DIP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 21MHz |
| High Level Output Current | -6mA |
| Input Capacitance | 5pF |
| Input Type | SINGLE-ENDED |
| Lead Free | Lead Free |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 6mA |
| Max Frequency | 21MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Input Lines | 8 |
| Number of Inputs | 8 |
| Number of Output Lines | 3 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 54ns |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74HCT |
| Supply Voltage-Nom | 5.5V |
| Technology | CMOS |
| Turn-On Delay Time | 36ns |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M74HCT574B1R Datasheet
Download the complete datasheet for Stmicroelectronics M74HCT574B1R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

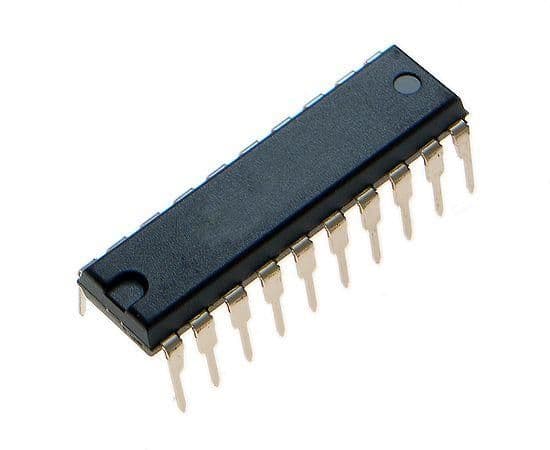

Product Images
