Technical Specifications
Stmicroelectronics P6KE150CARL technical specifications.
General
| Package/Case | DO-15 |
| Clamping Voltage | 265V |
| Diameter | 3.53mm |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Length | 6.75mm |
| Min Breakdown Voltage | 143V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 15A |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Operating Supply Voltage | 128V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 15A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 128V |
| RoHS Compliant | Yes |
| Series | P6KE, TRANSIL™ |
| DC Rated Voltage | 150V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics P6KE150CARL Datasheet
Download the complete datasheet for Stmicroelectronics P6KE150CARL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

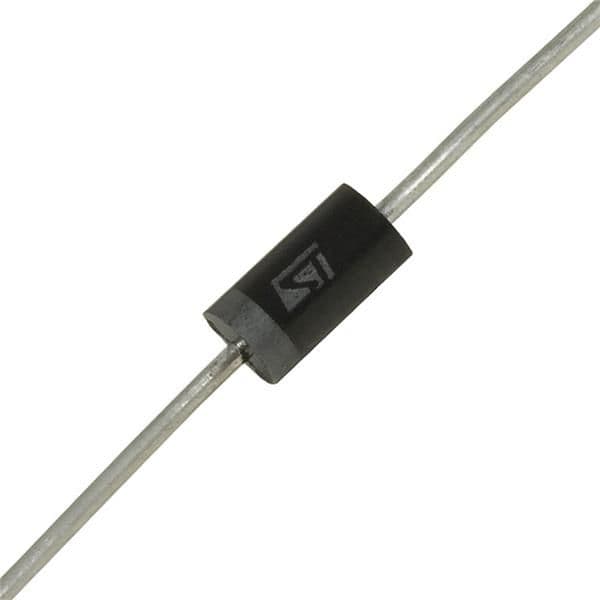

Product Images
