PackageDO-15
Capacitance900pF
MountingThrough Hole
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics P6KE39CARL technical specifications.
General
| Capacitance | 900pF |
| Package/Case | DO-15 |
| Clamping Voltage | 69.7V |
| Diode Type | ZENER |
| Leakage Current | 500uA |
| Min Breakdown Voltage | 37.1V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 1mA |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 33.3V |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 57A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 37.1V |
| Reverse Standoff Voltage | 33.3V |
| RoHS Compliant | Yes |
| Series | P6KE, TRANSIL™ |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics P6KE39CARL Datasheet
Download the complete datasheet for Stmicroelectronics P6KE39CARL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

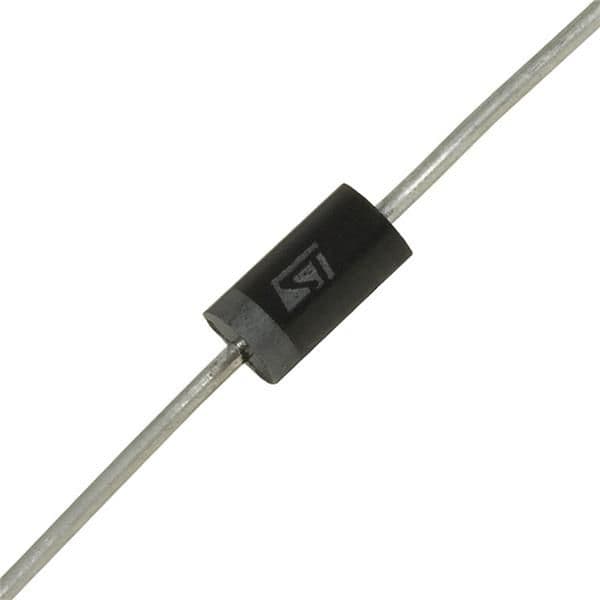

Product Images
