Bidirectional Transient Voltage Suppressor (TVS) diode in a DO-15 package, offering 600W peak pulse power dissipation. Features a 6.8V DC rated voltage, 5.8V reverse standoff voltage, and a 6.45V minimum breakdown voltage. Clamping voltage is 13.4V with a maximum surge current of 57A and peak pulse current of 298A. Operating temperature range spans -65°C to 175°C.
PackageDO-15
Capacitance4nF
MountingThrough Hole
PolarityBidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics P6KE6V8CA technical specifications.
General
Capacitance
4nF
Package/Case
DO-15
Clamping Voltage
13.4V
Clamping Voltage-Max
13.4V
Diameter
3.56mm
Diode Type
ZENER
Direction
Bidirectional
Height
3.53mm
Lead Free
Lead Free
Leakage Current
20mA
Length
6.75mm
Max Breakdown Voltage
7.14V
Min Breakdown Voltage
6.45V
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Power Dissipation
600W
Max Reverse Leakage Current
20mA
Max Surge Current
57A
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Elements
1
Operating Supply Voltage
5.8V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
298A
Peak Pulse Power
600W
Polarity
Bidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6.45V
Reverse Standoff Voltage
5.8V
RoHS Compliant
Yes
Series
P6KE, TRANSIL™
Termination
Through Hole
DC Rated Voltage
6.8V
Width
3.53mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics P6KE6V8CA Datasheet
Download the complete datasheet for Stmicroelectronics P6KE6V8CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

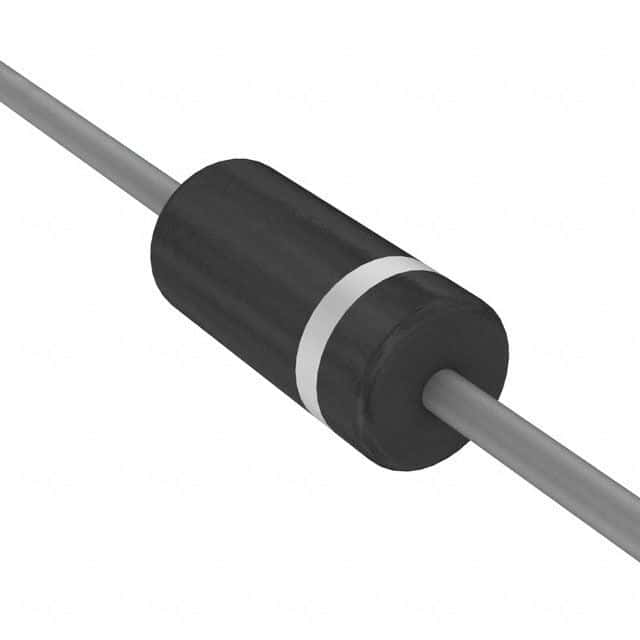

Product Images
