Voltage Mode PWM Controller, operating up to 300kHz, features a maximum duty cycle of 45% and a single output capable of 100mA at 18V. This integrated circuit supports through-hole and surface mount configurations within a 16-pin DIP package, with a typical supply voltage range of 8V to 40V and a maximum supply current of 8mA. Designed for push-pull and flyback topologies, it offers a 5V reference voltage and operates within a temperature range of 0°C to 70°C. RoHS compliant and lead-free, this component is supplied in a rail/tube package.
Frequency300kHz
PackageDIP
MountingThrough Hole, Surface Mount
Power1W
Quick Jump:
Technical Specifications
Stmicroelectronics SG3524N technical specifications.
General
Package/Case
DIP
Duty Cycle
45%
Fall Time
100ns
Frequency
300kHz
Height
5.1mm
Lead Free
Lead Free
Length
20mm
Max Duty Cycle
45%
Max Frequency
300kHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
8mA
Max Supply Voltage
40V
Min Supply Voltage
8V
Mount
Through Hole, Surface Mount
Number of Outputs
1
Output Current
100mA
Output Voltage
18V
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
1W
Quiescent Current
8mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
5V
RoHS Compliant
Yes
Tolerance
8%
Topology
Push-Pull, Flyback
Weight
0.057419oz
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics SG3524N Datasheet
Download the complete datasheet for Stmicroelectronics SG3524N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

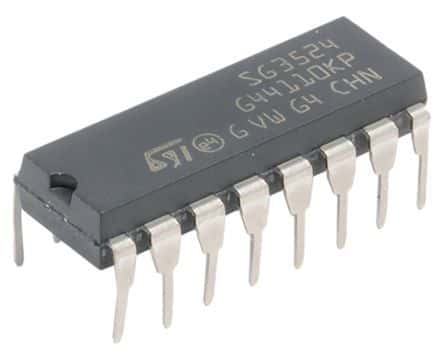

Product Images
