Stmicroelectronics
SGSD200
25A, 80V, PNP, Si, POWER TRANSISTOR, TO-247, ROHS COMPLIANT, PLASTIC PACKAGE-3
PackageTO-247
Current Rating-25A
MountingThrough Hole
PolarityPNP
Quick Jump:
Technical Specifications
Stmicroelectronics SGSD200 technical specifications.
General
| Package/Case | TO-247 |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 1.2V |
| Collector Emitter Voltage (VCEO) | 80V |
| Collector-emitter Voltage-Max | 3.5V |
| Current Rating | -25A |
| Emitter Base Voltage (VEBO) | 3.3V |
| hFE Min | 300 |
| Lead Free | Lead Free |
| Max Collector Current | 25A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 130W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | PNP |
| RoHS Compliant | Yes |
| DC Rated Voltage | -100V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics SGSD200 Datasheet
Download the complete datasheet for Stmicroelectronics SGSD200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

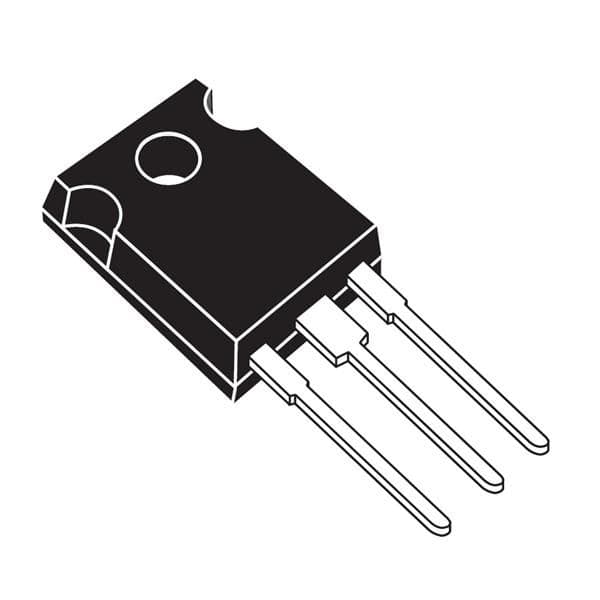

Product Images
