SM2T6V8A
200W TVS Diode, Unidirectional, 5V Working, 6.4V Breakdown, 1.6nF, DO-216AA
Unidirectional Transient Voltage Suppressor (TVS) diode offering 200W peak pulse power and 19.6A peak pulse current. Features a 5V working voltage, 6.4V reverse breakdown voltage, and 9.2V clamping voltage. This surface mount component, housed in a DO-216AA package, provides ESD protection with a low leakage current of 50µA. Operating temperature range spans from -65°C to 150°C, with a capacitance of 1.6nF.
PackageDO-216AA
Capacitance1.6nF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics SM2T6V8A technical specifications.
General
Capacitance
1.6nF
Package/Case
DO-216AA
Clamping Voltage
9.2V
Clamping Voltage-Max
9.2V
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Height
1.15mm
Lead Free
Lead Free
Leakage Current
50uA
Length
2.05mm
Max Breakdown Voltage
6.4V
Min Breakdown Voltage
6.4V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
2.5W
Max Reverse Leakage Current
50uA
Max Surge Current
19.6A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
5V
Package Quantity
12000
Packaging
Tape and Reel
Peak Pulse Current
19.6A
Peak Pulse Power
200W
Polarity
Unidirectional
Power Dissipation
200W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6.4V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Series
SM2T, TRANSIL™
Termination
SMD/SMT
Width
2.05mm
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics SM2T6V8A Datasheet
Download the complete datasheet for Stmicroelectronics SM2T6V8A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

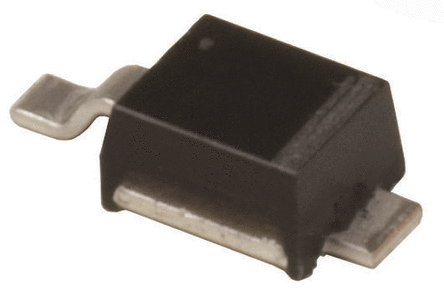

Product Images
